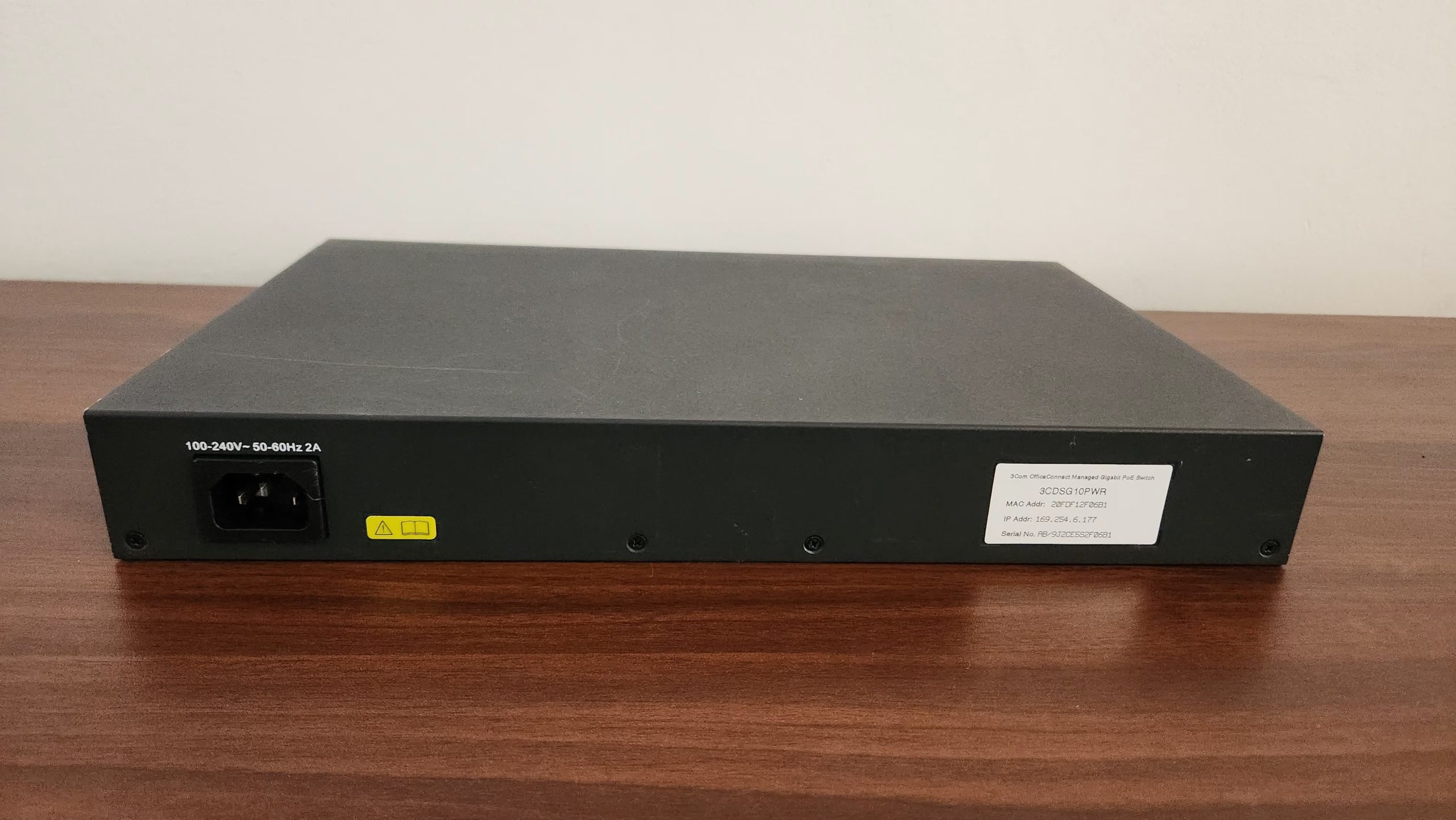

The 3COM 3CDSG10PWR OfficeConnect Managed Gigabit PoE Switch is a robust and versatile networking solution designed for small to medium-sized businesses requiring reliable, high-speed data connectivity with Power over Ethernet (PoE) support. This pre-owned unit is a cost-effective option for users who want enterprise-level performance and management features without breaking the budget. It offers full Layer 2 switching capabilities, easy web-based management, and the convenience of PoE—all in a compact, rack-mountable form factor.
Specifications
| Feature | Details |
|---|---|
| Model | 3COM 3CDSG10PWR |
| Series | OfficeConnect |
| Ports | 8 x 10/100/1000 Mbps RJ-45 + 2 x Combo SFP Gigabit Uplink Ports |
| PoE Support | IEEE 802.3af compliant, up to 15.4W per port, total PoE budget: 65W |
| Switching Capacity | 20 Gbps |
| MAC Address Table | 8K entries |
| VLAN Support | IEEE 802.1Q VLAN tagging |
| Management | Web-based GUI, CLI, SNMP v1/v2c, RMON |
| QoS Features | 802.1p Priority Queues, Rate Limiting, Traffic Classification |
| Security Features | Port Security, Broadcast Storm Control, IP Filtering |
| Dimensions | 10.4 x 6.3 x 1.7 inches (265 x 160 x 44 mm) |
| Weight | Approx. 3 lbs (1.36 kg) |
| Power Supply | Internal AC |
| Mounting | Desktop or Rack-Mountable (1U) |
| Condition | USA Pre-Owned, Fully Tested and Functional |
PoE Functionality for Smart Deployment
With its support for IEEE 802.3af PoE on all eight Gigabit ports, the 3CDSG10PWR can power devices such as VoIP phones, wireless access points, and IP cameras directly through the Ethernet cable—greatly reducing clutter and installation complexity. The switch provides a total PoE power budget of 65 watts, with up to 15.4 watts available per port, making it ideal for office and retail setups.
Advanced Web-Based Management
The switch includes an intuitive web interface for simplified network setup and monitoring. It also supports SNMP, CLI, and RMON, giving IT professionals the flexibility to manage the switch using their preferred method. The management features allow configuration of VLANs, QoS policies, port mirroring, traffic statistics, and security protocols, providing granular control over network performance.
Reliable Performance and Speed
Designed to deliver stable gigabit performance, the 3CDSG10PWR features a non-blocking switching architecture that provides 20 Gbps of total switching capacity. Whether transferring large files or supporting IP surveillance and VoIP traffic, this switch ensures smooth and lag-free network operation for critical business activities.
Security and Traffic Control
To protect sensitive data and prevent unauthorized access, the switch features robust security options including MAC-based port security, IP filtering, and broadcast storm control. These features help maintain a clean and controlled network environment, especially important in business settings with multiple connected devices.
Compact and Flexible
Its small 1U design allows the switch to be used on a desktop or mounted in a standard server rack. This flexibility makes it suitable for constrained spaces such as server rooms, small IT closets, or under-desk installations.
Ideal For
- Small Office Networks
- VoIP and Wireless Deployments
- Security Camera Setups
- Classroom and Retail Environments
- Budget-Conscious IT Infrastructures
